The Mechanics of an AC Hard Start Kit for Struggling Compressors

When Late-Summer Heat Overwhelms an Aging Compressor

Understanding the mechanics of an AC hard start kit for struggling compressors is essential when your thermostat is set to 70°F, but the house is stubbornly holding at 78°F. You hear the outside unit attempt to kick on, followed by a loud hum, a sharp click, and a sudden dimming of your living room lights. This is a classic symptom of an aging system fighting a losing battle against mechanical resistance. In our years of serving Bridgeville homeowners, our team at Sureway Heating Cooling Plumbing typically sees air conditioning units pushed to their absolute limits during the heavy late-summer August cooling demand, right around the back-to-school transition. The compressor, which acts as the heart of the system by pumping refrigerant, faces immense thermal and physical stress. Over the years, the internal components wear down, making the simple act of starting up an incredibly taxing event.

Most homeowners do not realize that starting an air conditioner requires significantly more energy than keeping it running. When an aging unit is overwhelmed by peak ambient temperatures at the end of the cooling season, the physical resistance inside the compressor reaches a critical threshold. The motor tries to turn, but the internal friction is too great, causing it to draw massive amounts of electricity from your home's panel. This is why you notice the lights flickering or dimming. The compressor is essentially stuck, pulling maximum power but failing to spin. To overcome this immense mechanical resistance, the system requires a specialized electrical intervention.

For homeowners looking to understand their equipment better, exploring foundational air conditioning resources can clarify exactly how these heavy-duty components operate. However, when you are actively experiencing loud clicking, dimming lights, or a system that refuses to start, relying on professional air conditioning services is the safest path forward. A licensed technician can evaluate the mechanical resistance and determine if an electrical torque boost is the right solution for your specific equipment.

Understanding Mechanical Resistance in an Aging Split-System AC Compressor

To grasp why an electrical intervention is necessary, you first have to understand the physical environment inside an aging split-system AC compressor. A compressor is a heavy-duty mechanical pump filled with tight-tolerance moving parts, bearings, and specialized lubricating oil. Over thousands of hours of operation, microscopic wear and tear accumulate. Bearings begin to lose their perfect factory smoothness, internal tolerances shift, and the lubricating oil can degrade due to excess heat. This accumulation of wear creates internal friction. When the motor attempts to start from a dead stop, it must fight against this increased friction just to complete its first rotation.

The Wall of Refrigerant Pressure

Friction is only half of the mechanical battle. The compressor's primary job is to pressurize refrigerant gas. When the system shuts off after a cooling cycle, the high pressure on the discharge side and the low pressure on the suction side need time to equalize. If the system tries to start before these pressures have balanced out, the motor is forced to push against a dense, physical wall of highly pressurized gas. Here in Bridgeville, our technicians frequently encounter systems battling high late-summer humidity, which forces your air conditioner into longer run times to properly dehumidify the air. These extended runs are often followed by very short off-cycles, preventing the refrigerant pressures from equalizing fully before the thermostat calls for cooling again. This maximizes the starting resistance the motor must overcome.

• Degraded Lubrication: Repeated overheating can cause compressor oil to lose its viscosity, increasing metal-on-metal friction during startup.

• Bearing Wear: Years of heavy operation gradually wear down internal bearings, making the rotor physically harder to turn.

• Unequalized Pressures: Short off-cycles mean the compressor must start against high-head pressure, acting like a physical brake on the motor.

• Thermal Expansion: Extreme outdoor heat causes internal metal components to expand slightly, tightening clearances and adding to the rotational resistance.

When you combine bearing wear, degraded oil, and unequalized refrigerant pressures, an aging split-system AC compressor is essentially fighting against itself every time it tries to turn on. The mechanical resistance becomes so severe that the motor's standard starting torque is no longer sufficient to get the internal components moving.

Electrical Symptoms: Why the AC Circuit Breaker Keeps Tripping

The mechanical struggle happening outside directly impacts the electrical system inside your home. Every electric motor has two distinct amperage ratings: Running Load Amps (RLA) and Locked Rotor Amps (LRA). RLA is the relatively low, steady current the motor uses while operating normally. LRA is the massive surge of power the motor draws in the split-second it takes to start from a dead stop. In a typical residential air conditioner, the LRA can be five to ten times higher than the running current. Under normal conditions, this surge lasts for just a fraction of a second—so briefly that your electrical panel barely registers it.

However, when internal friction and pressure prevent the rotor from turning, the motor remains in a "locked rotor" state. Because it cannot spin, it continues to draw that massive LRA surge for far too long. This prolonged draw of excessive amperage creates intense heat within the motor windings and pulls a heavy load through your home's electrical wiring. This is exactly why the ac circuit breaker keeps tripping. The breaker is a vital safety mechanism designed to monitor the wire's temperature and current load. When it detects that the compressor is pulling locked rotor amps for more than a second or two, it trips to cut the power, preventing the wires from overheating and potentially starting a fire.

Key electrical symptoms of mechanical resistance include:

• Tripping Breakers: The circuit breaker shuts off power to protect the wiring from the prolonged LRA draw.

• Dimming Lights: The excessive amp draw starves the rest of the electrical panel of voltage, causing lights to dim or flicker.

• Thermal Overload Engagement: The compressor has an internal safety switch that will shut the motor down if it gets too hot from pulling high amps.

• Loud Humming or Buzzing: The sound of electrical current surging through a motor that is physically unable to spin.

Repeatedly resetting a tripped breaker without addressing the underlying mechanical resistance is highly dangerous. It forces the compressor to endure massive electrical stress, which can eventually melt the internal insulation and short out the motor entirely. Understanding these electrical symptoms is a critical part of diagnosing AC compressor failures safely and accurately.

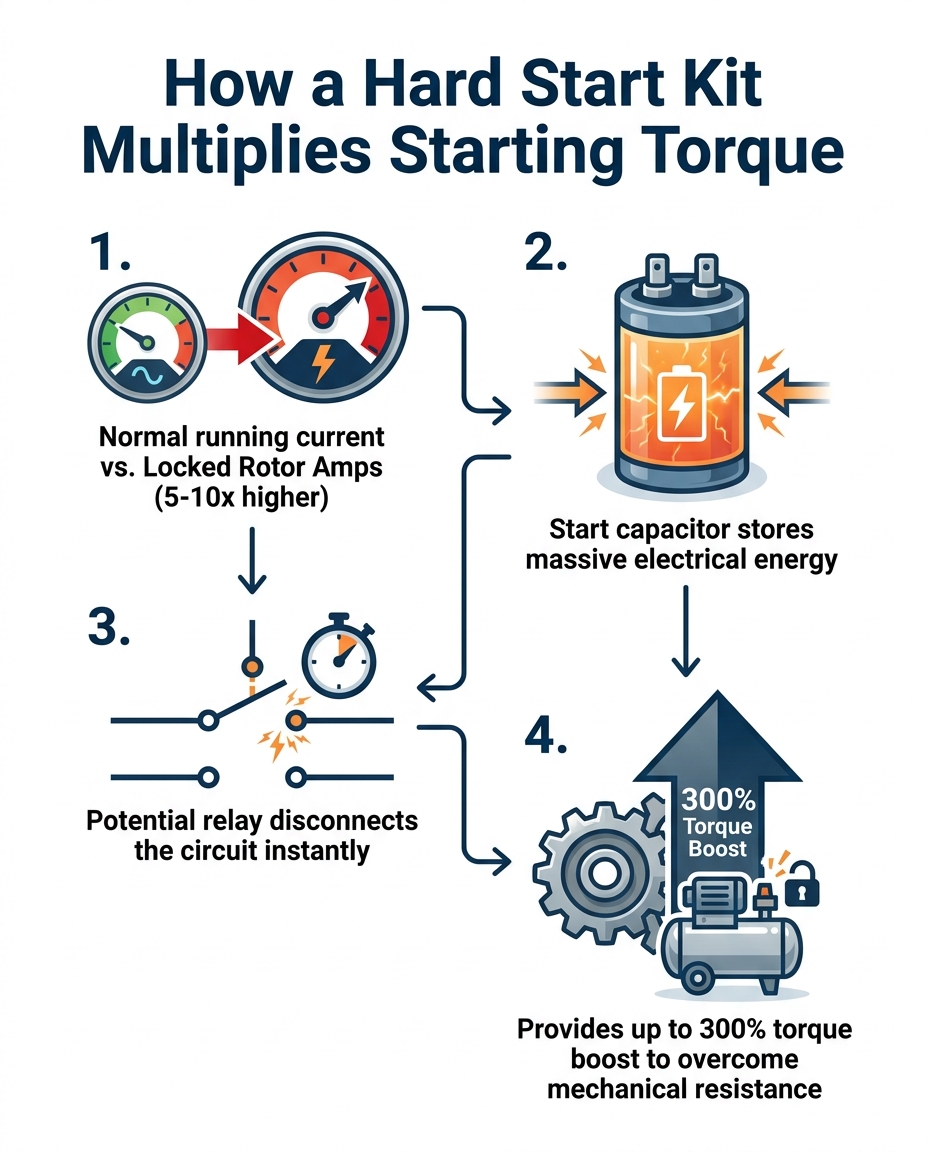

How a Hard Start Kit Delivers an Electrical Torque Boost

When an aging split-system AC compressor is structurally sound but struggling against friction and pressure, it needs a massive, instantaneous boost of rotational force to get moving. This is where a hard start kit comes in. A hard start kit is not a replacement for regular maintenance, nor is it a magic fix for a dead motor. It is a specialized electrical assembly consisting of two primary components: a high-capacity start capacitor and a potential relay. Together, these components alter the electrical phase of the motor, providing a temporary, highly concentrated jolt of starting torque.

The mechanics of this process happen in mere milliseconds, but they fundamentally change how the compressor handles mechanical resistance. Here is exactly how the kit delivers that crucial electrical torque boost:

1. Energy Storage: The start capacitor acts as a massive electrical reservoir. While the system is off, it stores a highly concentrated charge of electrical energy, waiting for the thermostat's signal.

2. The Initial Jolt: When the system calls for cooling, the start capacitor releases its stored energy directly into the compressor's start winding. This creates a severe phase shift in the electrical current, multiplying the starting torque by up to 300%.

3. Overcoming the Wall: This massive boost of rotational force allows the rotor to punch through the internal friction and the unequalized refrigerant pressure, getting the heavy mechanical components spinning instantly.

4. The Precision Disconnect: As the motor reaches roughly 75% to 80% of its normal running speed, it begins to generate its own voltage, known as Back Electromotive Force (Back EMF).

5. The Relay Triggers: The potential relay monitors this Back EMF. The exact microsecond the voltage indicates the motor is successfully running, the relay snaps open, completely removing the start capacitor from the electrical circuit.

This precision disconnect is absolutely vital. If the start capacitor were left in the circuit for even a few seconds too long, the intense electrical current would overheat and destroy the compressor's windings. By providing a 300% torque boost and instantly bowing out, the hard start kit allows the aging motor to start quickly, reducing the time it spends drawing Locked Rotor Amps and preventing the circuit breaker from tripping.

Hard Start Kit vs. Standard Run Capacitor

A common point of confusion for homeowners dealing with late-summer August cooling demand issues is the difference between a standard run capacitor and a hard start kit. While both are electrical capacitors that assist the compressor motor, their roles, capacities, and durations of operation are entirely different. Every modern single-phase air conditioner requires a run capacitor to operate. It is a permanent part of the electrical circuit. A hard start kit, on the other hand, is an aftermarket addition designed strictly to solve a specific mechanical problem.

The run capacitor's job is to maintain a continuous, even electrical phase during normal operation. It stays in the circuit 100% of the time the compressor is running, providing a steady, low-level electrical shift that keeps the motor spinning smoothly and efficiently. If a run capacitor fails, the compressor will struggle to start, often humming loudly before the thermal overload switch shuts it down. However, simply replacing a weak run capacitor with a new one will only restore the motor to its factory starting torque. If the compressor has developed severe internal friction from age and wear, factory starting torque will no longer be enough.

• Primary Function — Standard Run Capacitor: Maintains continuous electrical efficiency and smooth rotation. — Hard Start Kit (Start Capacitor + Relay): Provides a massive, instantaneous torque boost to overcome friction.

• Time in Circuit — Standard Run Capacitor: 100% of the time the compressor is running. — Hard Start Kit (Start Capacitor + Relay): Only milliseconds during the initial startup phase.

• Energy Capacity — Standard Run Capacitor: Low capacity (typically 30 to 80 microfarads). — Hard Start Kit (Start Capacitor + Relay): Extremely high capacity (often 100 to 300+ microfarads).

• Standard Equipment? — Standard Run Capacitor: Yes, required on all standard single-phase AC units. — Hard Start Kit (Start Capacitor + Relay): No, an aftermarket addition for aging or struggling units.

• Solves Mechanical Wear? — Standard Run Capacitor: No, only provides standard factory starting torque. — Hard Start Kit (Start Capacitor + Relay): Yes, multiplies starting torque by up to 300% to push through wear.

This is why a hard start kit is necessary for older units. It steps in to do the heavy lifting that a run capacitor was never designed to do. Once the hard start kit gets the heavy rotor moving and the potential relay drops it out of the circuit, the standard run capacitor takes over to keep the system running smoothly.

Precision Diagnostics: Strategic Life-Extension or Temporary Band-Aid?

Adding an electrical torque boost to an aging system is a powerful intervention, but it must be applied correctly. A hard start kit cannot fix a completely seized compressor, nor can it repair a motor with shorted or grounded electrical windings. If the internal bearings have fused together, or if the electrical insulation has melted away, no amount of starting torque will bring the unit back to life. This is why situations where an ac circuit breaker keeps tripping require comprehensive diagnostics to rule out dead shorts or grounded wires before any new components are installed.

At Sureway Heating Cooling Plumbing, our team focuses on precision diagnostics to help homeowners make informed, data-driven decisions rather than blindly applying temporary band-aids. A pattern we see often in Bridgeville is homeowners struggling with ongoing HVAC issues toward the end of summer who just need a complete system review. Instead of just swapping a part, our technicians spend time evaluating the entire system, seeking specific solutions by following the ductwork and airflow. The result is a properly configured system that provides consistent temperatures and quiet operation, proving that a holistic look always beats a quick fix.

When evaluating an aging split-system AC compressor, a professional must determine the remaining lifespan of the unit. If the compressor is mechanically sound but simply tight from age, we often recommend a hard start kit as a strategic life-extension that can add years of reliable service. It reduces the heat generated during startup, protecting the motor windings from premature failure. However, if the system is leaking refrigerant, plagued by electrical shorts, or suffering from severe internal metal fatigue, adding a start kit is merely delaying an inevitable replacement. Proper diagnostics ensure that any investment you make aligns with the mechanical reality of your equipment. Integrating a professional assessment into your routine AC maintenance schedule is the best way to catch these issues before they lead to a complete breakdown, and it may even help you qualify for generic energy efficiency rebates through local utility incentive programs if an upgrade becomes necessary.

Frequently Asked Questions About Hard Start Kits

What does a hard start kit do on an air conditioner?

A hard start kit provides a temporary, massive boost of electrical torque to help the compressor motor overcome mechanical friction during startup. It utilizes a high-capacity start capacitor to store energy and a potential relay to instantly release that energy into the motor. This allows an aging or tight compressor to start quickly without drawing excessive amperage for prolonged periods.

Why does my AC circuit breaker keep tripping on startup?

Your AC circuit breaker trips because a struggling compressor draws Locked Rotor Amps (LRA) for too long, exceeding the breaker's safety threshold. When mechanical resistance prevents the motor from spinning immediately, it pulls a massive electrical load that heats up the wiring. The breaker cuts the power to prevent an electrical fire or permanent damage to your home's panel.

How does a hard start kit help an aging AC compressor?

It helps an aging AC compressor by reducing the amount of time the motor spends drawing high amperage, significantly reducing heat buildup and wear on internal components. By multiplying the starting torque by up to 300%, the kit forces the motor past internal friction and unequalized refrigerant pressures instantly, extending the functional life of the equipment.

Can a hard start kit damage a compressor?

Yes, if sized incorrectly or installed on a system with a failing run capacitor, a hard start kit can cause severe damage. If the potential relay fails to disconnect the start capacitor precisely when the motor reaches running speed, the massive electrical current will quickly overheat and melt the compressor's internal windings. Professional sizing and installation are absolutely required.

How do I know if my AC needs a hard start kit?

The most common signs that your AC needs a hard start kit include dimming lights in the house when the unit turns on, a loud clicking or buzzing noise from the outdoor condenser, or short cycling where the unit struggles to stay running. A technician may also recommend one if they measure unusually high startup amperage during a routine maintenance visit.

What is the difference between a hard start kit and a soft start?

A hard start kit delivers a massive, instantaneous jolt of power to force a tight compressor to start, while a soft start gradually ramps up the electrical current to reduce the sudden strain on a generator or home electrical system. Hard start kits are primarily used to overcome mechanical wear in aging units, whereas soft starts are typically used to optimize power draw for off-grid or inverter-based setups.

Making an Informed Decision for Your Aging AC Unit

Understanding the mechanics of an AC hard start kit for struggling compressors allows you to evaluate your repair options with confidence. When late-summer August cooling demand puts extreme stress on your equipment, recognizing the difference between mechanical wear and a terminal failure is crucial. A hard start kit is a brilliant piece of electrical engineering designed to give a tight, aging motor the exact torque boost it needs to overcome internal friction and unequalized pressure.

However, because working with high-voltage capacitors and complex motor phases requires precision, professional assessment is non-negotiable. An expert diagnostic ensures that the intervention matches the actual mechanical reality of your equipment, preventing further damage and ensuring your home remains cool and comfortable. If your system is showing signs of starting fatigue, exploring comprehensive HVAC services will provide the clear, data-driven answers you need to keep your aging equipment running efficiently for as long as possible.
