How an Undersized Return Air Duct Causes Your AC to Blow Warm Air

When Your AC Starts Blowing Warm Air Instead of Cooling

You walk through the front door on a sweltering late-summer afternoon, expecting a wall of cool relief, but instead, the house feels heavy and uncomfortable. At Sureway Heating Cooling Plumbing, our team receives countless calls just like this right around the back-to-school transition. Your system is running constantly, and you immediately search for how an undersized return air duct causes your AC to blow warm air, which puts you ahead of the curve. Most homeowners immediately assume the system is completely broken or out of refrigerant. You hold your hand up to the vent, confirming your worst suspicion: the system is actively pushing unconditioned air into the room.

When you have an AC blowing warm air, the immediate instinct is to assume the system simply needs a "freon charge" or has developed a catastrophic refrigerant leak. Homeowners often rush to schedule a quick top-off, hoping it will resolve the issue before the evening heat sets in. However, in our years of servicing Bridgeville PA, we've found this common assumption frequently masks a much deeper, hidden mechanical failure that a simple chemical recharge will never fix. The actual culprit is often structural, hiding in plain sight behind your walls and ceilings.

An undersized return air duct acts like a chokehold on your entire HVAC system, suffocating the equipment and completely disrupting the delicate physics of indoor cooling. To understand why your vents are suddenly acting like a weak heater in the middle of summer, you have to look beyond the outdoor condenser unit and examine the structural breathing capacity of your home. If you want to explore more foundational concepts, checking out comprehensive air conditioning resources is a great place to start. First, we need to set the stage by understanding the direct connection between ductwork sizing, airflow volume, and overall system performance.

The Mechanics of Cooling: Why Proper Airflow is Non-Negotiable

To understand why a ductwork flaw causes such a dramatic failure, it is essential to understand how your system actually cools your home. Air conditioners do not "create" cold air out of nothing. Instead, they operate on the principle of heat transfer. The system is designed to absorb heat and humidity from your existing indoor air and move it outside, leaving the cooled, dehumidified air to circulate back into your living spaces. This entire process relies entirely on a constant, unhindered volume of air moving across the indoor evaporator coil.

In the HVAC industry, airflow is measured in Cubic Feet per Minute (CFM). The absolute baseline industry standard dictates that an evaporator coil requires approximately 400 CFM of airflow for every single ton of cooling capacity. If you have a standard three-ton air conditioner, your ductwork must be capable of moving 1,200 CFM of air at all times. When you rely on professional air conditioning services to design a system, our team ensures hitting this exact airflow target is the primary objective.

Your return duct serves as the "lungs" of the HVAC system. While the supply ducts push conditioned air into your rooms, the return duct is responsible for pulling the warm, stale air from your hallways and living areas back into the system to be conditioned. Without adequate return air, the entire heat exchange process immediately breaks down.

• Return Duct — Primary Function in Heat Exchange: Pulls warm indoor air into the system (The Lungs). — Impact of Restricted Airflow: Starves the system of air, preventing heat absorption.

• Evaporator Coil — Primary Function in Heat Exchange: Absorbs heat and moisture from the passing air. — Impact of Restricted Airflow: Drops below freezing temperatures due to lack of heat load.

• Blower Motor — Primary Function in Heat Exchange: Physically moves the air through the ductwork. — Impact of Restricted Airflow: Overheats and experiences premature mechanical failure.

• Supply Ducts — Primary Function in Heat Exchange: Delivers cooled, dehumidified air back to the home. — Impact of Restricted Airflow: Pushes out weak, unconditioned, or warm air.

If the lungs of your system are too small, the blower motor cannot pull enough warm air over the evaporator coil. When an AC blowing warm air is traced back to this issue, it is because the fundamental physics of heat transfer have been interrupted by a physical bottleneck.

How an Undersized Return Duct Starves Your System

The Problem: An undersized return duct is a physical restriction in your HVAC system's breathing capacity. A pattern we see often in our Bridgeville PA service area is that this flaw usually stems from a few specific scenarios. Sometimes, it is the result of poor initial installation when the home was built. Other times, it happens when a homeowner finishes a basement or adds an addition, increasing the square footage without expanding the ductwork. Most frequently, it occurs when a homeowner upgrades to a larger, more powerful AC unit (for example, moving from a two-ton to a three-ton system) but leaves the original, smaller ductwork in place. The new, powerful system is now trying to breathe through a duct designed for a much smaller unit.

The Cause: When the return duct is too small, it drastically increases the static pressure within the system. Static pressure is essentially the resistance to airflow. Think of it like trying to run a marathon while breathing exclusively through a tiny cocktail straw. Your lungs (the blower motor) have to work incredibly hard just to pull a minimal amount of air. This places immense, immediate mechanical stress on the blower motor, causing it to run hotter, draw more electricity, and degrade much faster than it should.

The Solution: The most critical consequence of this high static pressure and low airflow happens at the evaporator coil. Inside that coil, cold liquid refrigerant is waiting to absorb heat from the air passing over it. But because the undersized return duct is starving the system, there is virtually no warm air passing over the coil. Without that steady supply of warm air to absorb the intense cold of the refrigerant, the temperature of the coil rapidly plummets below freezing. In homes around our service area, our technicians have observed that this mechanical starvation is the exact moment a cooling cycle turns into a system failure.

The Freezing Point: Humidity and Restricted Airflow

To fully grasp why the system eventually starts blowing warm air, we have to look at the role of humidity. The evaporator coil does more than just lower the temperature of the air; it also acts as a powerful dehumidifier. As warm indoor air passes over the cold metal fins of the coil, the moisture in that air reaches its dew point and condenses into liquid water. Under normal, healthy conditions, this condensation simply drips down into a drain pan and flows safely out of your home.

However, when airflow is choked by a small return duct, the environment inside the air handler changes drastically. Because the coil temperature has plummeted below freezing due to the lack of warm air, that natural condensation no longer drips away. Instead, it instantly freezes to the metal fins.

• High latent heat load: As our team knows all too well, the late-summer weather in Bridgeville PA means the indoor air contains a massive amount of moisture. This high latent heat load means there is a continuous, heavy supply of condensation forming on the coil.

• Rapid ice accumulation: With an undersized return restricting airflow, this heavy condensation rapidly turns into solid ice, building layer upon layer across the surface of the coil.

• The insulator effect: Ice is an excellent insulator. Once a thin layer of frost forms, it blocks the refrigerant inside the coil from absorbing any remaining heat from whatever little air is passing through.

• Total airflow blockage: As the ice grows thicker, it physically bridges the tiny gaps between the aluminum fins, eventually forming a solid block of ice that completely seals off the ductwork.

The combination of Bridgeville PA's humid climate and an undersized return duct creates the perfect storm. The system is pulling in heavy moisture, but lacks the airflow volume necessary to keep the coil above the freezing point, accelerating the failure process exponentially.

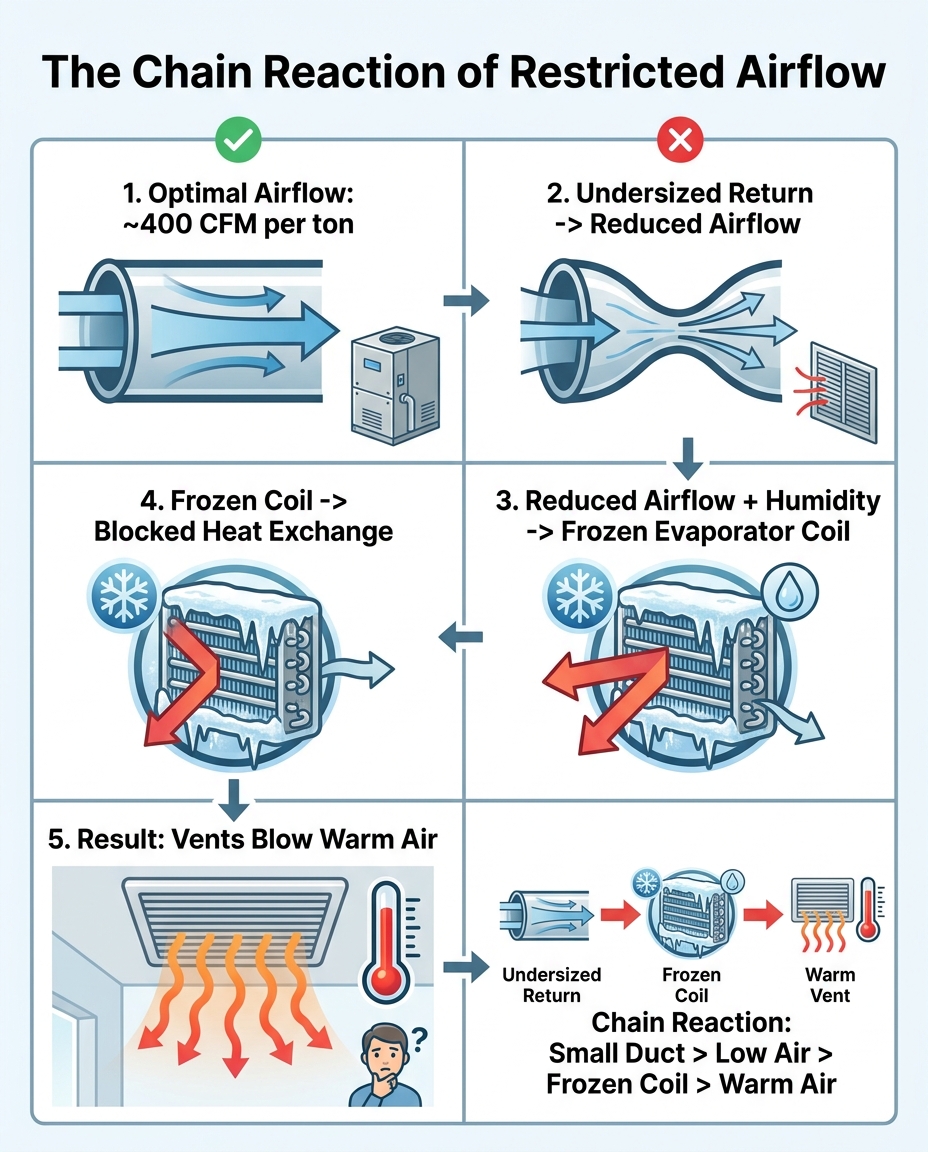

The Chain Reaction: Why Ice Leads to Warm Air from Vents

At this point, the underlying structural flaw has created a severe mechanical failure, but how does a block of ice result in an AC blowing warm air? The transition from a freezing coil to a sweltering living room follows a very specific chain reaction.

1. The coil becomes fully encased: The final stage of the failure occurs when a solid block of ice completely encases the indoor evaporator coil. The physical pathway for air to travel from the return duct, through the coil, and into the supply ducts is now blocked by a wall of solid ice.

2. The blower motor continues to fight: Your thermostat still registers that the house is too warm, so it continues to send a signal for the system to run. The blower motor keeps spinning, desperately trying to push air through the system.

3. Air bypasses the cooling process: Because air cannot physically pass through the frozen coil to be cooled, the blower motor ends up pulling whatever ambient air it can from around the air handler cabinet or through leaks in the ductwork. It then forces this unconditioned, ambient warm air out through your supply vents.

4. The system recirculates heat: The system is now simply recirculating the existing warm air in your home, completely bypassing the heat exchange process. The air coming out of your vents feels warm because it has not been cooled at all.

When faced with this situation, a homeowner's first instinct is often to walk over to the thermostat and turn the temperature down even lower, hoping to force the system to cool. Our technicians always advise against this—it is the worst possible action to take. Lowering the thermostat simply commands the outdoor compressor to run even longer, which pumps more cold refrigerant into a coil that is already frozen solid, exacerbating the ice buildup and risking permanent damage to the compressor.

Continuous Cycles: The Late-Summer Breaking Point

Homeowners often ask our team why their system worked perfectly well in May and June, only to suddenly fail and start blowing warm air in August. The answer lies in the duty cycle of the air conditioner and the lack of recovery time during peak seasonal heat.

During milder spring weather, an undersized return duct might go completely unnoticed. When outside temperatures are in the 70s, your air conditioner only needs to run for 10 or 15 minutes at a time to cool the house. It then cycles off for 30 or 40 minutes. Even if a small amount of frost begins to form on the coil due to restricted airflow during that short run cycle, the long off-cycle provides plenty of time for that frost to melt naturally before the system kicks on again.

However, when late summer arrives and kids are heading back to school, the heat load on your home increases dramatically. To keep up with 90-degree heat, your air conditioner must run continuously, often operating for hours at a time without a break. This continuous operation leaves the struggling coil with zero recovery time. The frost turns to ice, the ice thickens, and because the system never shuts off to thaw, the ice block eventually seals the system entirely. Understanding why your AC blows warm air during peak afternoon heat requires acknowledging this cumulative wear and tear.

The system is running non-stop, fighting restricted airflow and high static pressure, which pushes the blower motor and the compressor to their absolute limits. This continuous strain is exactly why our dispatch board lights up with complete system shutdowns right when cooling is needed the most.

Root-Cause Diagnostics vs. Temporary Band-Aids

The Problem: When an air conditioner freezes over and blows warm air, treating the symptom is easy, but treating the root cause requires expertise. A temporary band-aid approach involves simply turning the system off, letting the ice melt, putting in a fresh air filter, and turning it back on. While the system will blow cold air again for a short time, the fundamental structural flaw—the ductwork being too small—remains untouched. The system will inevitably freeze again the next time it faces a heavy cooling load.

The Cause: Permanent resolution requires acknowledging that the ductwork is fundamentally incapable of moving the required volume of air. Recently, one local homeowner reached out to us during the August heat for some plumbing issues, but also mentioned their central air conditioning was failing to keep up. Our technician didn't just look at the pipes; they diagnosed the AC problems holistically, discovering the system was structurally starved for air, and installed a new unit with proper airflow considerations.

The Solution: At Sureway Heating Cooling Plumbing, we focus on a comprehensive diagnostic approach. Rather than just treating the symptom by thawing the coil, our technicians measure the static pressure of your system to evaluate the entire duct network's capacity. By checking the exact duct sizing against the tonnage of your equipment, we identify the root cause of the failure. Keeping up with routine HVAC maintenance allows professionals to catch these high static pressure readings before they result in a massive block of ice. Upgrading to a properly sized, high-efficiency system may even qualify you for generic federal tax credits or utility energy rebates; we always advise our customers to verify current programs with a tax professional or their utility provider.

Signs Your Return Duct Requires Assessment

If you suspect your system is struggling to breathe, there are several audible and physical indicators our technicians recommend looking for before the coil completely freezes over:

• Loud whistling or whooshing noises: High-velocity air being forced through a small return grille often creates a distinct whistling sound.

• Doors slamming shut on their own: When the AC kicks on, extreme negative pressure in the hallways can pull interior doors shut.

• Hot and cold spots: Uneven temperatures throughout the house often indicate that the system cannot pull enough air from distant rooms to condition them properly.

• Frequent, recurring frozen coils: If your system freezes repeatedly despite having a brand-new, clean air filter, structural airflow restriction is highly likely.

Potential solutions for an undersized return vary depending on the layout of your home. We may recommend adding a supplemental return drop to another part of the house, enlarging the existing return grille and duct transition, or modifying the main trunk line to reduce static pressure. Our technicians always take the time to explain these mechanics so you can invest in a permanent solution rather than a temporary fix.

Frequently Asked Questions

What happens if return air is too small?
If the return air duct is too small, the HVAC system experiences high static pressure and cannot pull enough warm air across the indoor coil. This restricts the heat exchange process, causing the blower motor to overwork and overheat. Eventually, the lack of warm air causes the evaporator coil to drop below freezing, leading to ice buildup and system failure.

Can a bad return duct cause my AC to not cool?
Yes, a restrictive or poorly designed return duct is a primary reason an air conditioner fails to cool a home. Without sufficient return air, the system cannot absorb the heat from your living spaces. The equipment will run constantly, but because the airflow is choked, the actual cooling output drops dramatically.

Why is my AC running but blowing warm air?
When your AC is running but blowing warm air, it often means the indoor evaporator coil has frozen solid due to restricted airflow. The solid block of ice prevents air from passing through the cooling fins. As a result, the blower motor simply recirculates unconditioned, ambient warm air throughout your ductwork.

How do I know if my AC return is undersized?
Common signs of an undersized return include a loud whistling noise at the filter grille, doors that pull shut when the system turns on, and a system that frequently freezes over. Additionally, if you recently upgraded to a larger capacity air conditioner without expanding your ductwork, your return is likely undersized for the new equipment.

Why does restricted airflow freeze an AC coil?
Restricted airflow freezes a coil because there is not enough warm indoor air passing over the cold refrigerant to absorb its cooling energy. Without that heat load, the temperature of the coil rapidly drops below 32 degrees Fahrenheit. Any humidity or condensation present on the coil instantly turns to solid ice.

How do professionals measure return duct sizing?
Professionals evaluate duct sizing by measuring the system's total external static pressure using a specialized tool called a manometer. We compare this pressure reading against the blower motor's performance chart and the physical dimensions of your ductwork to determine exactly how much airflow is being restricted and where the bottleneck is located.

Final Thoughts on Airflow and Cooling Performance

Dealing with an AC blowing warm air during the peak of summer is incredibly frustrating, especially when the unit seems to be running non-stop. By understanding that the root cause is often an undersized return duct choking your system's airflow, you can avoid wasting time on temporary band-aids. Recognizing the mechanical connection between airflow, static pressure, and a frozen coil empowers you to seek a professional diagnostic assessment from the team at Sureway Heating Cooling Plumbing, ensuring your home achieves permanent, reliable comfort.
